7 / 8 waterproof sensor connector connection harness customization

part number: admin

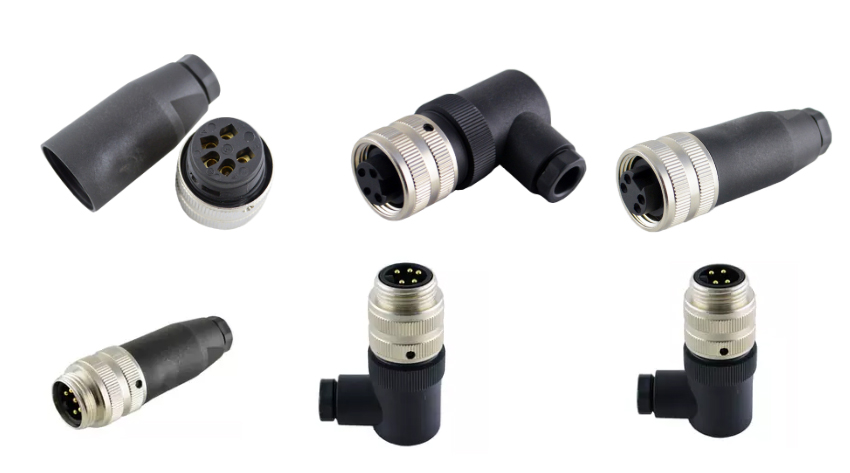

IP67 field installable plastic straight male 7/8'' connector 5pins IP67 field installable plastic straight male 7/8'' connector 5pin• 7/8'' circular connector with screw locking equivalent to Binder, Phoenix, Lumburger automation... • Waterproof rating i

Consult now

Available Description:                                           Anti-vibration locking screw design                                          IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: 7/8''
Pins: 5
Gender: Male
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -40℃~+85℃
Wire guage: Max. 1.5mm²(Max. 16AWG)

Material:

Connector Body: PA66+GF
Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM

Electrical data:

Rated Current: 9A
Rated Voltage: 250V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
