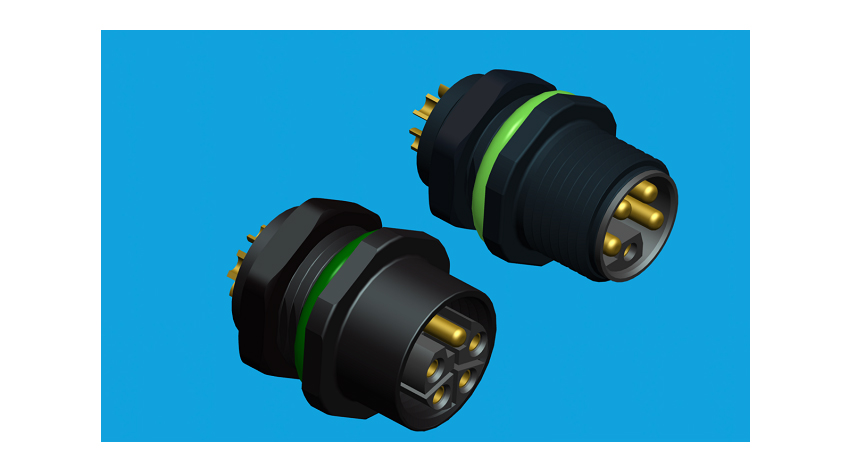

M12 full plastic plate end connector, suitable for medical equipment connection, water equipment, marine equipment connector, corrosion resistance, strong salt spray resistance and other characteristics, the M12 circular connector meets the international
Consult now
Electrical Data:
Rated current: 4A
Rated voltag: 250V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ
Connector Specification:
Pole:6 pin
Coding: A
Gender: Female
Insert: PA66+GF
Waterproof O-ring: FKM
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Termination: Riveting
Connector locking system: Screw locking
Cable/Wire Specification:
Wire gauge (AWG): 18AWG ~ 24AWG
Wire gauge (mm²): 0.25mm² or 0.34mm²
Wire jacket material: PVC
Temperature range: -25°C ~ +90°C
