M5 small sensor connector/connecting line, supporting 485 communication signal, widely used in automotive sensors, industrial automation sensors, with waterproof, oil resistance, hydrolysis resistance, thread locking structure, reliable and stable perform
Consult nowM5 male plug molded cable is mainly used to connect host and various sensors such as temperature sensor, heat-sensitive sensor, photosensitive sensor, photoelectric sensor, acoustic sensor etc.

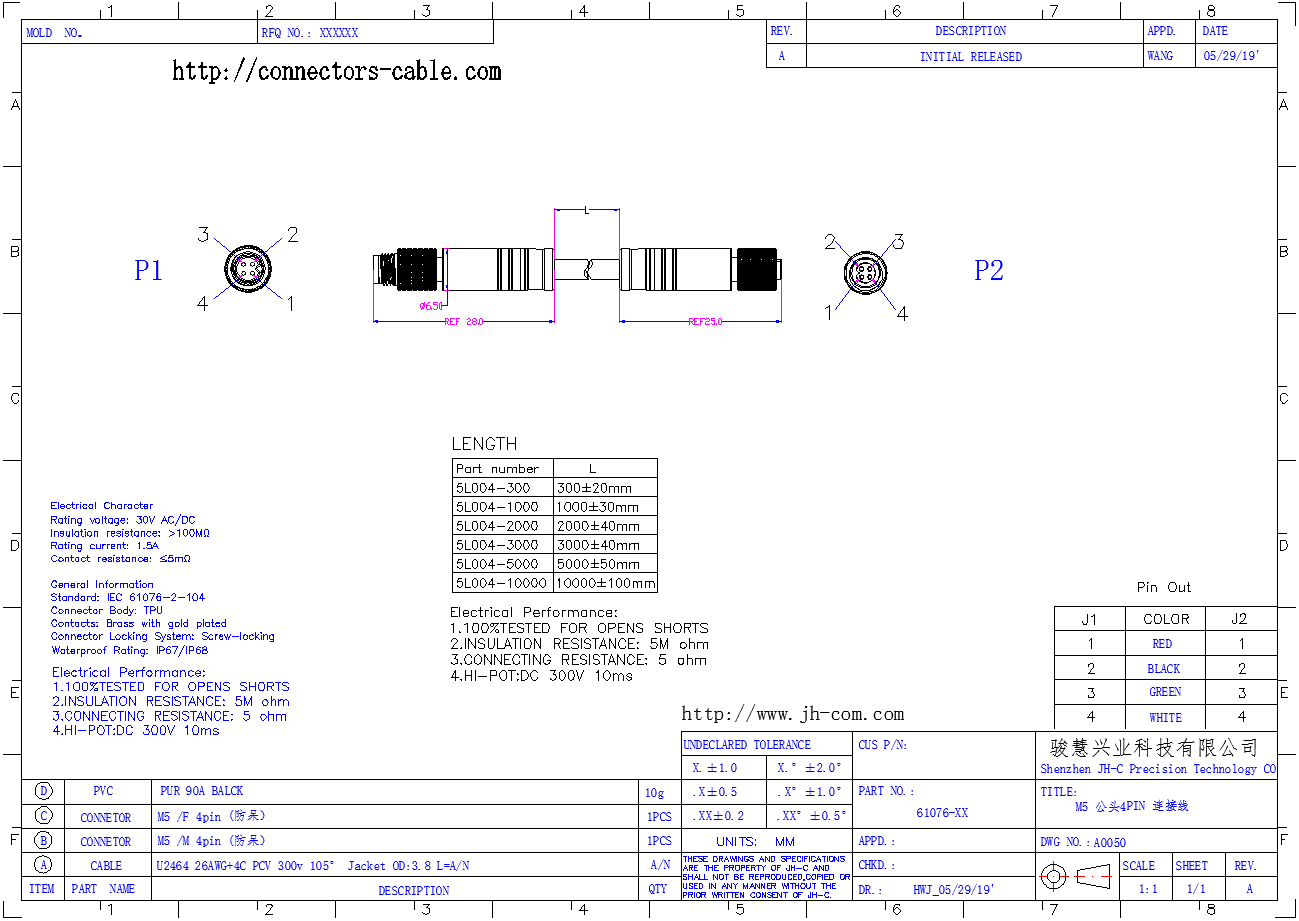

The hole place arranges(Comply with the needle direction)
Material and specifications
Coupling Threaded coupling
Shell material Brass nickle plated
Insert material PA66+30%GF
Contact material copper(silver /gold plated)
Termination Soldering
Mating cycle 500
Temperature Range -25℃ ～+85℃
Cable diameter ≤ φ3.3mm
Specification
Number of Contacts 3, 4
Rated Voltage 60V
Rated Current 1A
Contact Resistance <5mΩ
Insulation Resistance >100MΩ
Pollution Degree 3
Temperature Range -20℃ to +85℃
Degree of Protection IP67 when mated
Mating Times 100 cycles
Nom Pin φ 0.48±0.03
Wire Gauge 26AWG
Cable Jacket PVC or PUR
Material of Housing Brass Nickel Plated
Material of lnsertion PA66+GF UL94V-0
Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
