General Description: This is M12 X Coded Connector with the stainless steel Metal shell that can shield external electromagnetic interference . It conforms to IEC 61076-2-109 GbE ( gigabit Ethernet ) Cat6A Ethernet stantard and can achieve the biggest H
Consult nowM12 connectors conform to IEC 61076-2-109 GbE ( gigabit Ethernet )
Product Features：
Products Type: M12 Circular Connector
Contact Body Type: Female
Coding Type: X Coding.
Plug Type: straight type
Wiring Method: Soldering
Contacts: 8 pin
Installation Method: M12 screw mount
Part Number:M12-F-X-A-08
Dimensions Drawing

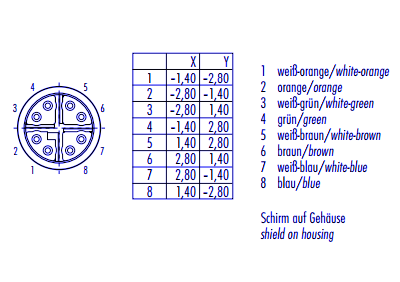

The hole place arranges(Comply with the needle direction)
Material and specifications
Coupling Threaded coupling
Shell material Brass nickle plated
Insert material PA66+30%GF
Contact material copper(silver /gold plated)
Termination Soldering
Mating cycle 500
Temperature Range -25℃ ～+85℃
Cable diameter ≤ φ5.0-8.0mm
Specification
Number of Contacts 8
Rated Voltage 48V
Rated Current 4A
Contact Resistance <5mΩ
Insulation Resistance >100MΩ
Temperature Range -20℃ to +85℃
Degree of Protection IP67 when mated
Mating Times 100 cycles
Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
